Inframatic 9500
Industry Technology Made Better
The Inframatic 9500 is designed specifically to meet the needs of grain traders, elevators, and processors. It tests whole grains, oilseeds, pulses, and beans for moisture, protein, oil, and more in less than 1 minute. It is fully-networkable, robust, accurate, and simple to use.
The Right Features
The IM 9500 uses industry standard NIR transmission to analyze samples with added features to make it more accurate and stable while optimizing instrument up-time. The monochromator is machined from a single metal block increasing rigidity and reducing effects of vibration and changes in temperature on measurements. All instruments are standardized at the factory to a National Institute of Standards (NIST) wavelength standard helping ensure multiple instruments provide the same results on grain samples. A certified reference pellet check sample is available to monitor hardware performance and provides a traceable record. These features β plus many others β combine to make the IM 9500 the perfect instrument for rapid whole grain analysis.
Calibrations and Approvals
With 40+ years of NIR, data collection, and calibration development, we have the tools and expertise to develop, maintain, and update global calibrations. These Standard calibrations are included with the instrument at time of purchase. The IM 9500 is approved by regulatory bodies around the world including German PTB, French LNE, Australian NMI, and US NTEP.
Features and Benefits
| Fast | 30s analysis allows you to keep up with truck arrival & unloading |
| βAccurate | βSell and buy grain according to its commercial value |
| βEasy to Use | βPour in sample and press analyze on the touchscreen |
| βRugged/Robust | βOptimal up-time to keep running during busy harvest |
| βGlobal Calibration | Included calibrations based on 1000s of samples get you up and running almost out of the box |
Uses
| βGrain Exchange | βSave money by avoiding mixing sound and sprouted grain |
| βPrice and pay on quality | βBlend grains or flours to create a product with specific characteristics |
| βGrain In-take | βEnsure deliveries meet end-user specifications and purchase agreements |
Specification
| Product | Wheat, Corn, Soybeans, Barley, Pulses and many others |
| Parameters | βMoisture, Protein, Oil, Hectoliter Weight/Test Weight (optional) and more |
| Analysis Time | βΛ 30s (50s with HLW/TW module) |
| βSample Size | β400ml (600ml with specific weight module HLW/TW) |
| βSubsample | βUp to 16 per sample |
| βAnalysis Principle | βScanning grating, Transmittance |
| βWavelength Range | β570-1100 nm |
| βSize (W x D x H) | 485 x 390 x 370 mm (485 x 390 x 510 with HLW/TW) |
| βWeight | β34 kg (40 kg with HLW/TW) |
| Interfaces | βEthernet, 4 USB ports |
| Display | 12" LCD color touch screen |
Recommended Accessories

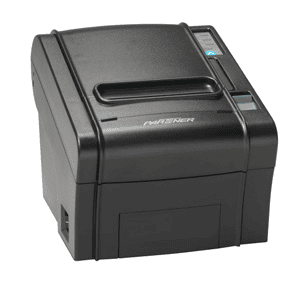

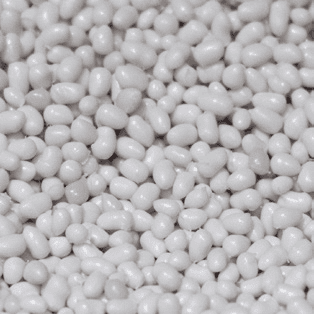

| βSpecific Weight Module | βFlour Module | βTicket Printer | βReference Pellets |
| βReports Hectoliter Weight / Test Weight (must be selected as part of initial purchase) | Measure flour and semolina in 10s for moisture, protein, and ash (select flour, semolina, or both) | Hard copy of results for driver's records | Use to routinely check hardware performance and to create a quality record |
